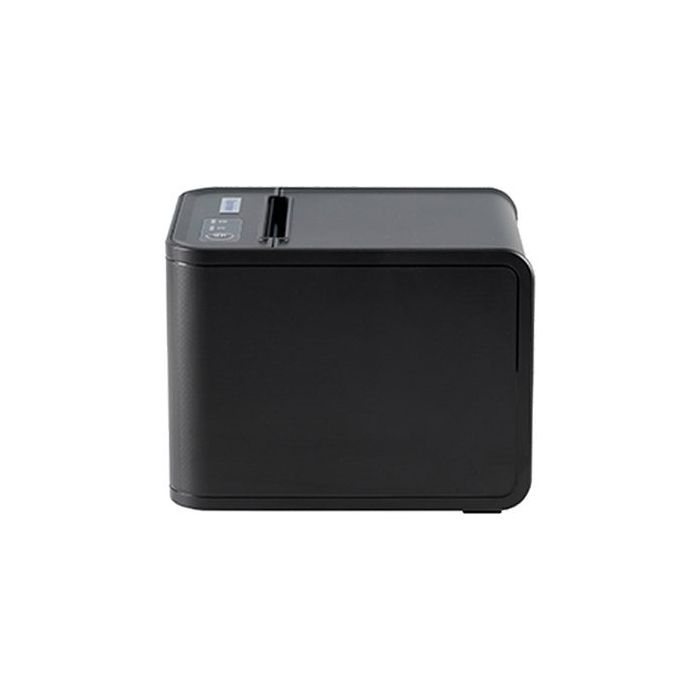

🖨️ Xprinter XP-80T Thermal Receipt Printer
The Xprinter XP-80T is a reliable and efficient thermal receipt printer designed for use in retail, hospitality, and service environments. With its compact design and strong performance, it delivers high-speed printing and dependable operation for various point-of-sale (POS) systems.
🔧 Key Features
-
Printing Technology:
Direct thermal printing – no ink or toner required.
-
Print Speed:
Up to 200 mm/s for fast and smooth printing.
-
Print Width:
Supports up to 72mm width for standard thermal receipts.
-
Resolution & Column Capacity:
576 dots/line or 512 dots/line, depending on the font and settings.
-
Connectivity Options:
USB and LAN interfaces for flexible connection to POS systems.
-
Paper Compatibility:
Uses 79.5 ± 0.5mm × 80mm thermal paper rolls.
-
Line Spacing:
Adjustable (default is 3.75mm, customizable via command).
-
Character Fonts:
Supports ANK characters, Font A, Font B, Simplified and Traditional Chinese.
-
Barcode Support:
-
1D: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128
-
2D: QR Code, PDF417 (except over LAN)
-
Auto Cutter:
Built-in partial cutter with a lifespan of approximately 1.5 million cuts.
-
Memory:
-
Input Buffer: 96KB
-
Flash Memory: 256KB
-
Power Supply:
-
Cash Drawer Port:
Supports DC 24V/1.25A for automatic cash drawer triggering.
-
Weight:
Approx. 0.93 kg – lightweight and easy to install.
-
Dimensions:
165 × 130 × 124.5 mm (Depth × Width × Height)
-
Operating Conditions:
Temperature: 0°C to 45°C
Humidity: 10% to 80%
-
Storage Conditions:
Temperature: -10°C to 60°C
Humidity: 10% to 90% (non-condensing)
🛠️ Typical Applications
-
Retail Shops and Supermarkets
-
Restaurants and Cafés
-
Bars and Nightclubs
-
Movie Theaters and Ticketing Counters
-
Garages and Auto Service Centers
-
Medical Clinics and Reception Desks
|
