Motherboard gigabyte b760m ddr4

Brand: GIGABYTE

Roll over image to zoom in

5.300,00 EGP

Status:In stock

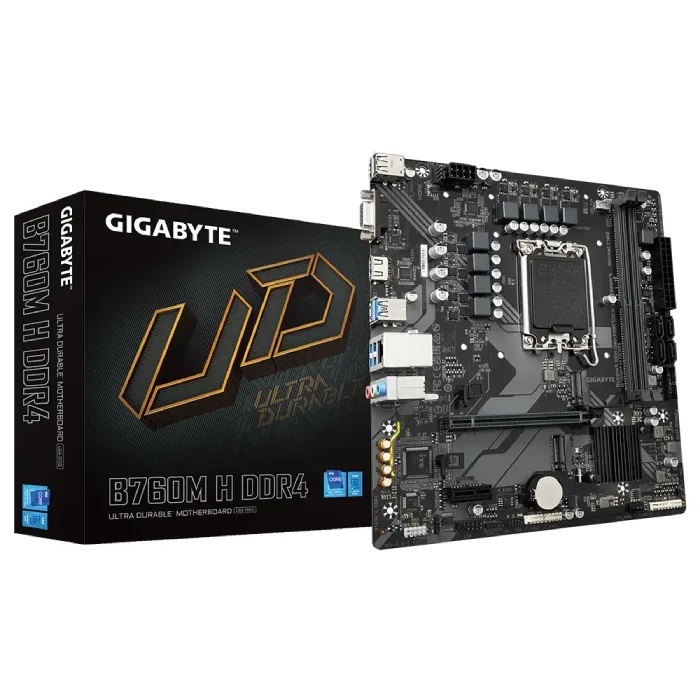

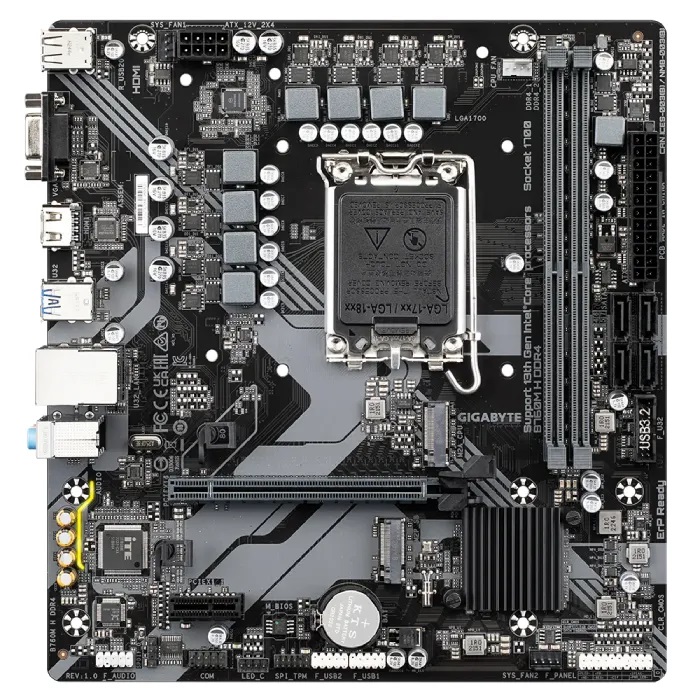

Gigabyte B760M H DDR4 Motherboard – Micro ATX, Intel B760 Chipset

Overview:

The Gigabyte B760M H DDR4 is a micro-ATX motherboard built on Intel’s B760 chipset, designed to support 12th, 13th, and 14th Gen Intel Core processors (LGA 1700 socket). Ideal for budget-conscious gamers and builders, this board supports DDR4 memory, PCIe Gen4, dual M.2 NVMe SSDs, and features a robust VRM configuration — all packed into a compact form factor.

CPU & Memory Support

Socket: LGA 1700
Chipset: Intel B760
CPU Compatibility: Intel 12th / 13th / 14th Gen Core, Pentium Gold, and Celeron processors
Memory:
- 2 x DDR4 DIMM slots
- Supports up to 64 GB DDR4
- Dual Channel
- Supports up to DDR4-5333 (OC) via XMP

Expansion & Graphics

1 x PCIe 4.0 x16 (for GPUs)
1 x PCIe 3.0 x1 (for add-on cards)
Integrated Graphics Output (depends on CPU):
- 1 x HDMI 2.0 port (up to 4K @ 60Hz)
- 1 x D-Sub (VGA) port

Storage Support

2 x M.2 PCIe 4.0 x4 NVMe SSD slots
4 x SATA 6Gb/s ports
RAID 0/1/5/10 support

Connectivity

LAN: Realtek Gigabit Ethernet (RJ-45)
Rear USB Ports:
- 4 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0
Internal Headers:
- USB 3.2 Gen 1
- USB 2.0
- RGB LED header
- TPM header
- Front Panel Audio header

Audio

Realtek 7.1-Channel HD Audio
High-quality audio capacitors
Audio noise guard design

Cooling & Power

6+1+1 Phase Hybrid Digital VRM
8-pin solid CPU power connector
Smart Fan 6:
- Multiple temperature sensors
- 4 hybrid fan headers (PWM/DC)
- Fan Stop function for silent operation

Special Features

Ultra Durable Design:
- Anti-sulfur resistors
- Solid pin power connectors
- 6-layer low-loss PCB
EZ-Latch PCIe Slot for easy GPU removal
PerfDrive BIOS Modes:
- Max Turbo
- Optimization
- Spec Enhance
- E-Core Disable
RGB Fusion: 1 RGB header (12V standard LED)
